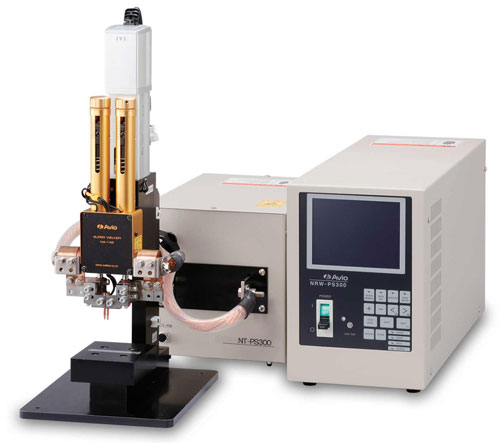

Picture of Hybrid Battery Tab Welding Machine

Hybrid Battery Tab Welding Machine

Quick overview


NRW-PS300

Product Features:

  • Repeatable, High Quality Welds with Minimal Thermal Effect
  • Rapid Weld Temperature Rise Time
  • Unique Polarity Switching Prolongs Electrode Life by Suppressing Peltier Effect
  • Wide Range of Applications - The NRW-PS300 unique four (4) Pulse Technology includes multiple welding modes such as Pre-Weld
  • Constant Weld Energy Monitoring with Automatic Weld Stop
  • Welder Set-Up and Monitoring Made Easy with Built-In LCD Display


High-Quality Appearance and Consistant Welding Strength:

Quality Stable Welding:



Items
Specifications
Welding Power Supply
NRW-PS300
Welding Transformer
NT-PS300
Control Method
IGBT Control (Polarity Switch)
Secondary Short-Circuit Current
8000A
Setting Range
Weld Time
Total: 0.0 ~ 60.0ms
Transformer Tap
Four (4) Step
Number of Conditions
63
Monitoring
Average/Peak
V, I, W, R
Phase Shift
W • S
Display of Waveform
After Welding: V, I, W, R
I/O Interface
50pin
I/O Connector
20pin
EXT_I/O
Communication
RS-232C
Dimensions
Power Supply
186(W) x 490(D) x 265(H)mm
Transformer
210(W) x 300(D) x 210(H)mm
Weight
Power Supply
Approx. 19kg
Transformer
Approx. 26kg
Power Source
Typical
3Φ AC380 ~ 145V ±5%
Optional
3Φ AC200 ~ 230V ±10%



Call for pricing
:
