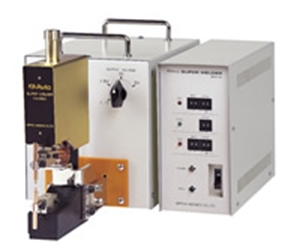

Picture of Single-Phase AC Type

Single-Phase AC Type

Quick overview

Generally considered the best for welding thick plates and copper stranded cable as the weld time can more widely adjust than electrostatic sorted energy type of welders.

Single-Phase AC Type

With low peak weld currents there is little less chance of weld spattering and burrs (hair like protrusions) that are often produced from dirt or other surface contaminants during the weld preheat or up slope cycle.


Product Features:

  • Excellent for integration with automatic operations because of small size and multiple welding functions: Pre-Heating, Up-Slope and Cooling Time
  • Weld heat actuation control for both Squeeze and Hold functions
  • Automatic switching between two (2) set-up conditions
  • Built-in power source voltage compensation

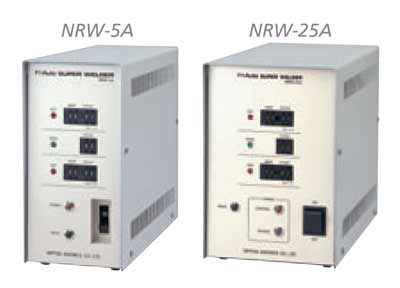

Welding Timer:

Items

NRW-5A

NRW-25A
Control System
 Synchronized
Range of Heat Control
 40-100%
Welding Time
 0.5-99 Cycles
Squeeze/Hold Time
 0-99 Cycles
Welding Function
 Pre-Heating, Up-Slope, Cool Time, Channel Switching Function
Rated Capacity
 3KVA (50% Duty Cycle) 6KVA (50% Duty Cycle)
9.5KVA (5% Duty Cycle) 19KVA (5% Duty Cycle)
Power Source
 AC200V   ±10%   50/60Hz   1Ø   (Option: AC-100-120V, 220-240V)
Dimensions
 110(W) x 315(D) x 227(H)mm 150(W) x 315(D) x 227(H)mm
Weight
 6kg 7.8kg

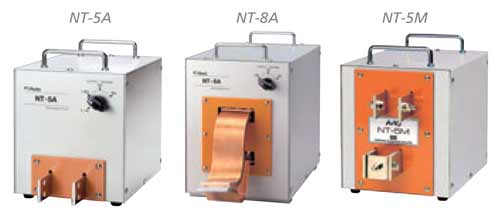

Welding Transformer:

Items
 NT-5A
 NT-8A
 NT-5M
Primary Input Voltage
 200V 200V 200V
Rated Input Capacity (50% Duty Cycle)
 3KVA 6KVA 2.8KVA
Secondary Short-Circuit Current
 5000A 11000A 2400A
Secondary Open-Circuit Voltage
 1.1, 1.8, 3.5 (V) 1.8, 3, 5 (V) 6, 6.5, 7, 7.5 (V)
Dimensions
 200(W) x 350(D) x 265(H)mm 230(W) x 566(D) x 335(H)mm 200(W) x 350(D) x 265(H)mm
Weight
 29kg 47kg 28kg


Step Down Transformer (Custom Made):

Items
 ST-100
 ST-200
Primary Input Voltage
 115/230V 220/230V
Rated Input Capacity
 1KVA 6KVA
Secondary Open-Circuit Voltage
 100V 200V
Dimensions
 130(W) x 230(D) x 193(H)mm 130(W) x 260(D) x 193(H)mm
Weight
 11kg 12kg
