High Power

Quick overview

Most suitable for reflow soldering and Thermo-compression

High Power Type:



Product Features:

  • Various Temperature Profiles allow Stable Production
    • Digital PID Control
  • High Joining Quality and Easy Management by Various Monitoring Functions
    • Temperature Monitoring: Upper & Lower Limit (Average, Peak), Profile
    • Error Function: Over Heat, TC Open, Rising, etc.
  • Standard Fuctions
    • 15 Reflow Conditions
    • RS-232C & I/O Internface
    • Up and Down Function for the Head and Air-Cooling Control Signal
    • An Auxilliary Thermocouple with Input Terminal

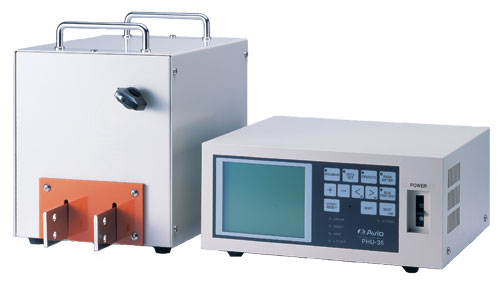

Items PHU-35 NT-35
Heating Temp

Room Temp - 600°C 1°C step E, J type

Room Temp - 900°C K type (option)

Heating Time 000 - 999 (x100ms, x10mx) -
Rating Power - 3KVA
transformer - -
Tap Voltage - 1.0V, 2.0V, 3.0V
Power Source

1Φ, AC200V - 230V ±10%

(AC100-115V: option)

Dimension/Weight 278 (W) x 250(D) x120(H) mm ≈ 7.4kg 200(W) x 270(D) x 220(H) mm ≈ 25kg
Call for pricing
